PRODUCTS >
Bright Bars
>Bright Bars
Profile / Operations / Range
| Profile | Operation| Range |
|
 |
Drawing +C | 10 - 37 mm |
| |
Drawing +SH | 10 - 36 mm |
| Cut to length | ||
| Diameter | 10 - 26 mm | |
| Length | 150 - 2.000 mm |
Tolerances
| Tolerances | |
| Cold drawing / Peeling | h9 / h10 |
| Cut to length | |
| Standard | +20 mm |
| Special | 1 mm |
Other Supply Conditions
- Length 150 to 6.000 mm
- Straightening up to 0,5 mm/m
- Chamfered both sides (0,5mm to 5mm)
- Bundles 1.000 kg a 2.500 kg
- Technical conditions EN 10277-1
- Annealing (GKZ) & Softening

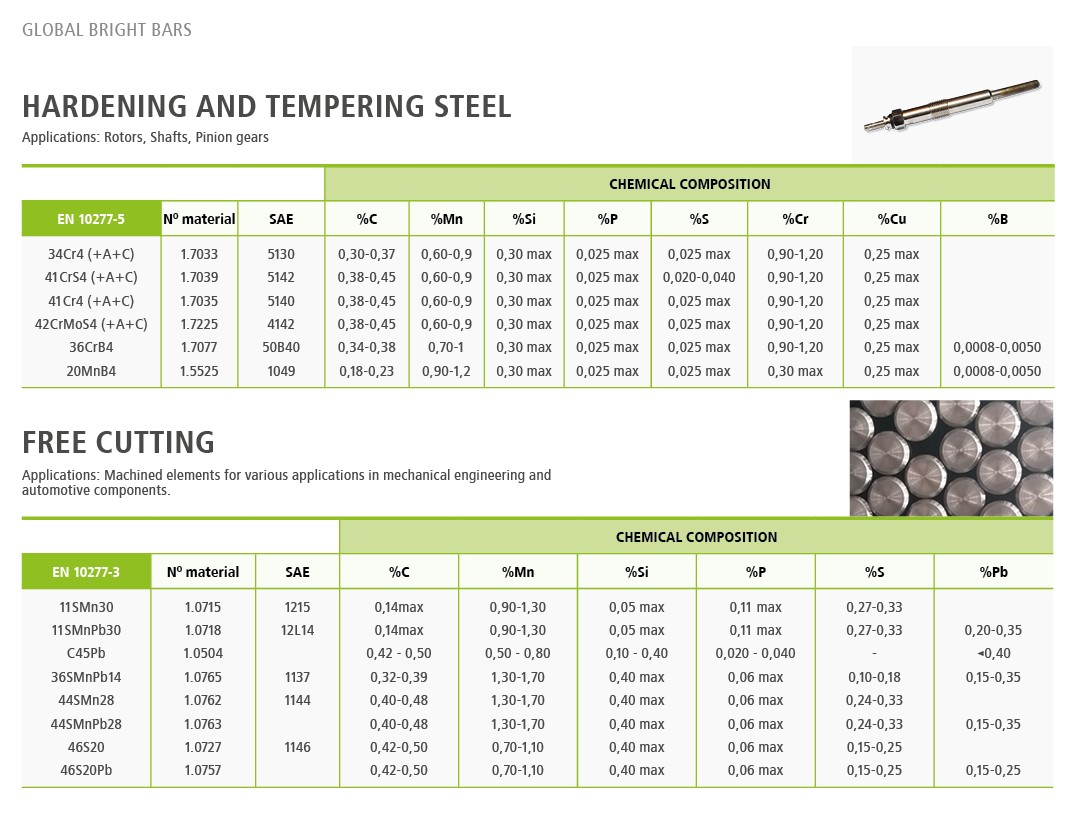

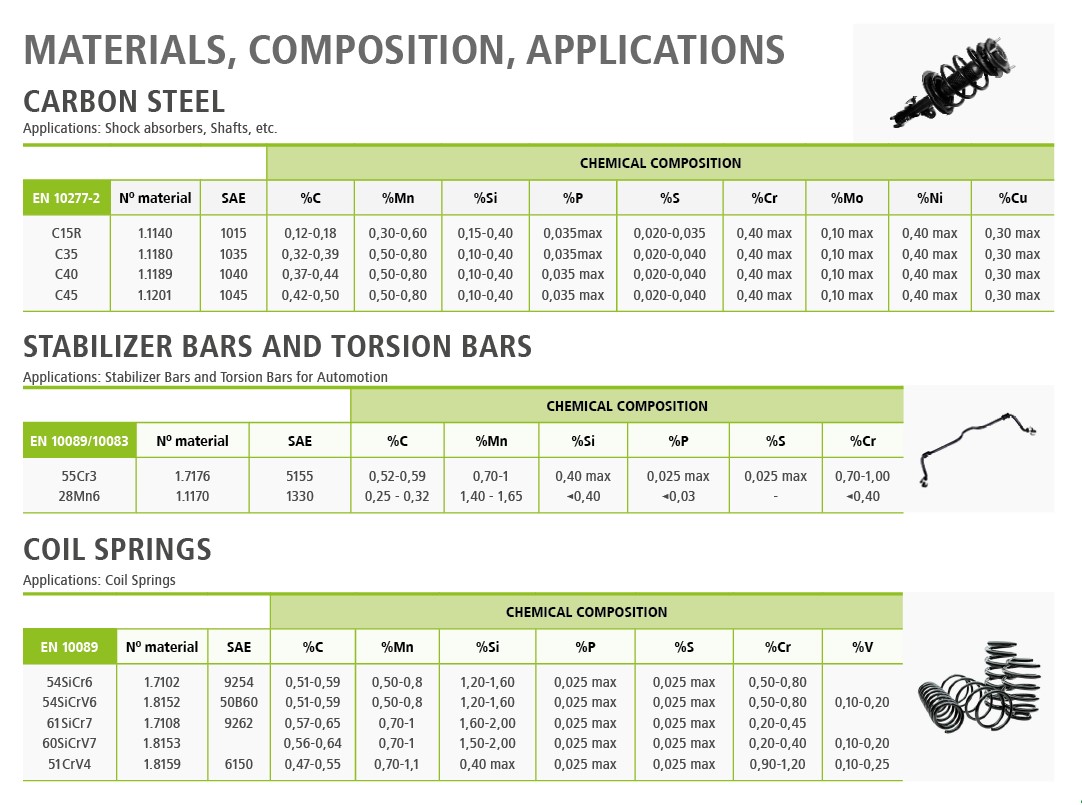

Steel Grades
| Steel Grades | |
| Alloys | 42CrMo4, 16MnCr5 |
| Free Cutting | 11SMnPb30, 44Smn28, 46S20... |
| Steel for shock absorbers carbon | C35, c35Pb, C45, C45Pb |
| Suspension spings & Torsion bars | 55Cr3. 54SiCrV6, 61SiCr7, 50CrV4, C42 (Mod), 28MN6 |
| Steel Grades |
| Alloys |
| 42CrMo4, 16MnCr5 |
| Free Cutting |
| 11SMnPb30, 44Smn28, 46S20... |
| Steel for shock absorbers carbon |
| C35, c35Pb, C45, C45Pb |
| Suspension spings & Torsion bars |
| 55Cr3. 54SiCrV6, 61SiCr7, 50CrV4, C42 (Mod), 28MN6 |
